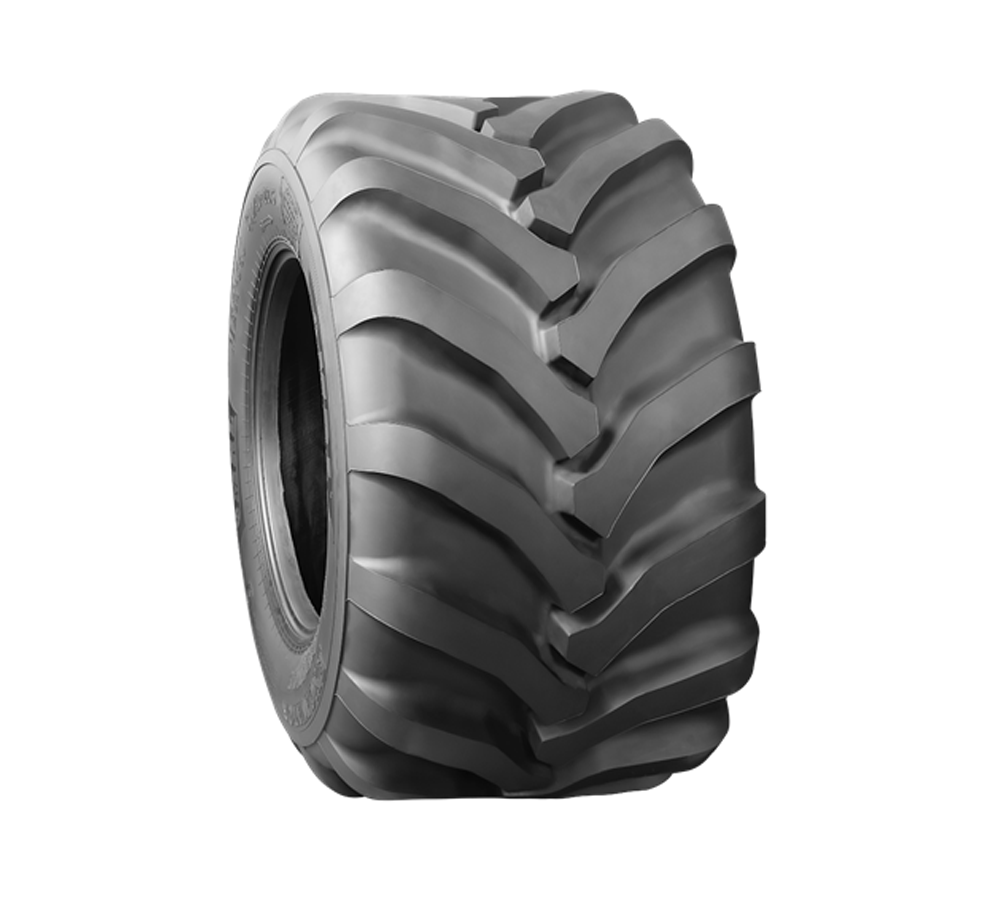

550/45-22.5 16 PR MRL MEX 340 156B/159A8 I-3 TL

550/45-22.5 16 PR MRL MEX 340 156B/159A8 I-3 TL

Description

The MRL MEX 340 has been designed for Forestry, Excavator and trailer applications. The tread pattern provides for good traction and self-cleaning properties whilst a strong casing and cut and chip resistant compound provide for stability and increased durability. A steel-belted version has been designed to increase puncture resistance.

Features

  • Bias ply flotation tyre designed for agro-industrial use.
  • Good traction and self-cleaning properties.
  • Strong casing and cut and chip resistant compound.
  • Steel-belted version available.

Specification

Application
PLANT
Size
550/45-22.5
Brand
MRL
Pattern
MEX 340
Load/Speed Index
156B/159A8
Ply Rating
16
TT/TL
TL
Construction
BIAS
Nominal Section Width
550
Profile
45
Rim
22.5
TRA
I-3
Recommended Rim
16DC
Section Width
539 mm
Overall Diameter
1110 mm
Static Load Radius
513.27 mm
Rolling Circumference
3319.78 mm
Tread Depth
39.00 mm
Max Load (KG)/Speed (KM/H) 1
4375/40
Max Load (KG)/Speed (KM/H) 2
4000/50
Inflation Pressure Bar
2.80
ECE 106
Yes
